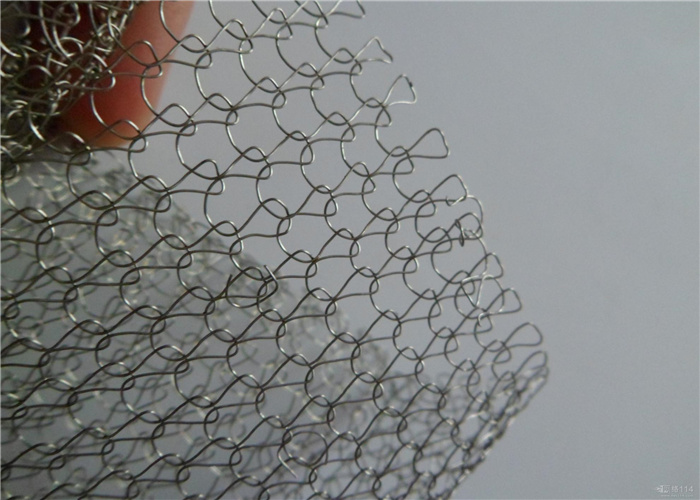

Knitted wire mesh fabric stainless steel copper wire mesh gas
liquid filter mesh/metal knitted wire mesh Titanium gas
Materials
Stainless steel 304, 316, 316 L, brass, red copper, monel, nickel,
titanium, 1Cr18Ni9Ti, Cr20Ni80, Cr20Ni50, galvanized steel, carbon
steel
Wire diameter
0.1-0.55 mm (0.20 mm-0.25 mm in most cases)
Wire type
Flat wire or round wire
Hole size 4 mm*3 mm 5 mm*6 mm 2 mm*4mm 4mm*5mm
Hole shape
Irregular
Width
40 mm, 80 mm, 100 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600
mm, etc
Length
30-200 m, customized size is also available.
Thickness
0.12-2.5 mm, customized size is also available.
Craft through layered, spiral wood or compressed, produces a
tortuous path for highly effective particular capture.
Surface
Flat-type and corrugated type
| Type | Common Specification |
| Standard | 40-100 60-150 105-300 140-400 160-400 200-570 |
| High efficiency | 60-100 80-100 80-150 90-150 |
| 150-300 200-400 300-600 |
| Strong penetration | 20-100 30-150 70-400 100-600 170-560 |
| Damping | 33-30 38-40 20-40 26-40 30-40 |
30-50 48-50 30-60 30-80-50-120
|
Wire diameter | * Round wire: 0.08 mm - 0.5 mm.
* Flat wire: 0.1 mm x 0.3 mm, 0.1 mm x 0.4 mm, 0.2 mm x4 mm, 0.2 mm
x 0.5 mm.
* Mesh opening: 2 mm x 3 mm, 4 mm x 6 mm to 12 mm x6 mm. |
Applications | * widely used in various industries for air and liquid separation
and filtration, * used as knitted copper cleaning mesh to clean the inside and
outside of the machine parts without hurting the surface of parts, * made into knitted cleaning balls to clean the kitchenware and
used in the industries for cleaning applications, * used for eliminate the mist as knitted mesh mist eliminator. |
Packing details: In waterproof paper,PVC bag,wooden case.Customer request avalible.
Delivery details: 7-15 days after receiving the 30% deposit or as required.
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment;
2.what can you buy from us?
stainless steel wire mesh,filter mesh,conveyor belt,filter
element,wire mesh filters
3. why should you buy from us not from other suppliers?
We have 83 sets P7100&P7150 Sulzer polyester printing mesh
weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50
sets Japanese GRS1300 wire mesh looms,and 46 sets of other machine
and devices including automatic warp arranging machine.
