    14 Gauge 16 Gauge Concertina Barbed Tape 200m 250m 400m 500m

    Ask Lasest Price
    Brand Name : NOVA
    Certification : ISO-9001:2008
    Price : $500.00 - $730.00/ Ton
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Ton/Tons per Month
    Delivery Time : Quantity(Tons) 1 - 500 >500 Est. Time(days) 15 To be negotiated
    • Product Details
    • Company Profile

    14 Gauge 16 Gauge Concertina Barbed Tape 200m 250m 400m 500m

    14gauge, 16gauge Galvanized barbed wire fence for sale 200m/250m/400m/500m/galvanized barbed wire/PVC coated barbed wire


    We offer barbed wire with different treatment, like PE or PVC coated.

    Technical Info of PVC Coated Barbed Iron Wire: Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.

    A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us. Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.

    Features

    l l Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere.

    l Its high resistance allows greater spacing between the fencing posts

    Barbed wire specification:

    Barbed Wire Specification
    Type

    Wire Gauge

    (SWG)

    Barb Distance

    (cm)

    Barb Length
    (cm)

    Electric Galvanized Barbed Wire;

    Hot-dip zinc plating barbed wire

    10# x 12#7.5-151.5-6
    12# x 12#
    12# x 14#
    14# x 14#
    14# x 16#
    16# x 16#
    16# x 18#

    PVC coated barbed wire;

    PE barbed wire

    before coatingafter coating7.5-151.5-6
    1.0mm-3.5mm1.4mm-4mm
    BWG11#-20#BWG8#-17#
    SWG11#-20#SWG8#-17#

    PVC/PE coating thickness: 0.4mm-0.6mm;

    Different colors or length are available at customers request.

    Weight of packing in coil: 16kg/coil, 25kg/coil, 50kg/coil as standard.

    Gauge of Strand and Bard
    in BWG
    Approximate Length per Kilo in Meter
    (Barbs Spacing)
    3"
    4"
    5"
    6"
    12 x 12
    6.0617
    6.7590
    7.2700
    7.6376
    12 x 14
    7.3335
    7.9051
    8.3015
    8.5741
    12-1/2 x 12-1/2
    6.9223
    7.7190
    8.3022
    8.7221
    12-1/2 x 14
    8.1096
    8.8140
    9.2242
    9.5620
    13 x 13
    7.9808
    8.8990
    9.5721
    10.0553
    13 x 14
    8.8448
    9.6899
    10.2923
    10.7146
    13-1/2 x 14
    9.6079
    10.6134
    11.4705
    11.8553
    14 x 14
    10.4569
    11.6590
    12.5423
    13.1752
    14-1/2 x 14-1/2
    11.9875
    13.3671
    14.3781
    15.1034
    15 x 15
    13.8927
    15.4942
    16.6666
    17.5070
    15-1/2 x 15-1/2
    15.3491
    17.1144
    18.4060
    19.3385

    Applications


    l Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system.


    l It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection.


    l Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

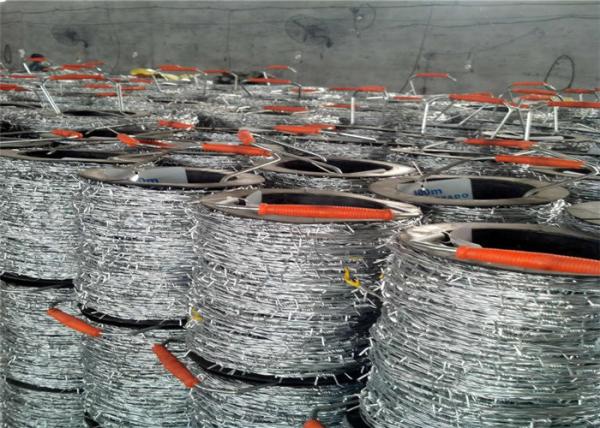

    Packing:

    1) coils with iron axletree

    2)coils with wooden axletree

    3) coils in bulk

    4) coils in wooden pallet

    5) coils with waterproof paper


    1.OEM/ODM is available:


    1) Print logo in the products;


    2) The size and specification can be produce and design according to your demand.


    2.High quality, fashion designs, reasonable and competitive price, fast lead time.


    3.After-sale service


    1) All products will have been strictly quality check in house before packing.


    2) All products will be well packed before shipping.


    3) All our products have 10 years rot resistance.
