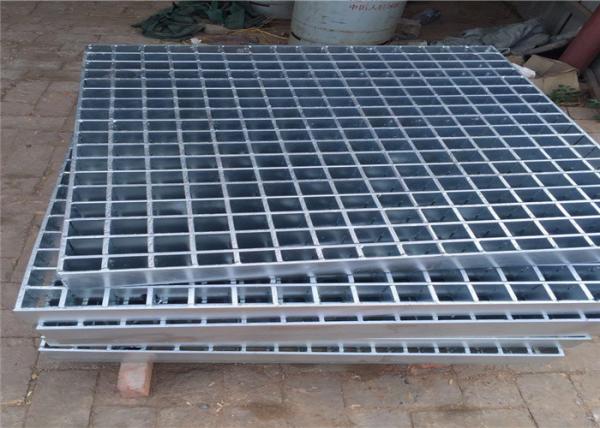

32x4mm 30x100mm drainage steel grating shower drain grates trench drain cover/stainless steel floor drain grate Exterior

Material: Low carbon steel , Stainless steel, etc

Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc

Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc

Bearing Bar Pitch: 30mm, 40mm, 50mm, etc

Cross Bar Diameter: 5mm, 6mm, 8mm, etc.

Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc

Bearing bar (width * thickness)	25*3mm,25*4mm,25*5mm,30*3mm,30*4mm,30*5mm,32*3mm,32*5mm,40*3mm,40*4mm,40*5mm,50*3mm,50*4mm,50*5mm Etc.
Bearing bar pitch (mm)	12.5, 15, 20, 25, 30, 34.3, 35.3, 40,41.25, 50, 60...(30, 40,50 mm are recommended ),also can do the size as customer's request
Cross bar pitch (mm)	38.1, 50, 76.2, 100, 101.6 . Etc.(30, 50, 100 ,150 mm are recommended ),also can do the size as customer's request

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(width×thickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(width×thickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Application of drainage trench cover steel grating

Steel grating is mainly used in the chemical industry, food processing, catwalk and trench cover and other industrial as listed: Power plant, Chemical plant, Oil refinery, Steel plant, Machinery plant, Paper-making factory, Waste water treatment, Pharmacy industrial, Food processing,etc.

Steel grating usual package:
1. Strap Packaging.
2. Pallet Packaging.
3. Screw Rod Fixation.
4. Other pacakge is available.

Q1. Can you provide free sample?

Yes, we can provide 1 free sample.

Q2. Lead time?

7-10 days per container, Challenge the industry's fastest time!

Q3. I need special material, can you help?

Yes, high standards material and high zinc thick can be chosen.

Q4: How can I get a quote?

Contact us with specification, size, quantity and your port, then fast quote with be sent.
