Heavy hot dip Galvanized Hydraulic Works use Metal Gabion Baskets
People started using simple metal wire mesh baskets as solutions to
problems of erosion protection in river works and earth retaining
structures in the late 19th Century. In the 20th Century, with
steel wire coating and manufacturing techniques having greater
development, more and more metal gabion baskets were used in earth
protection and earth retaining structures around the world.
Types of coating for Nova metal gabion baskets:

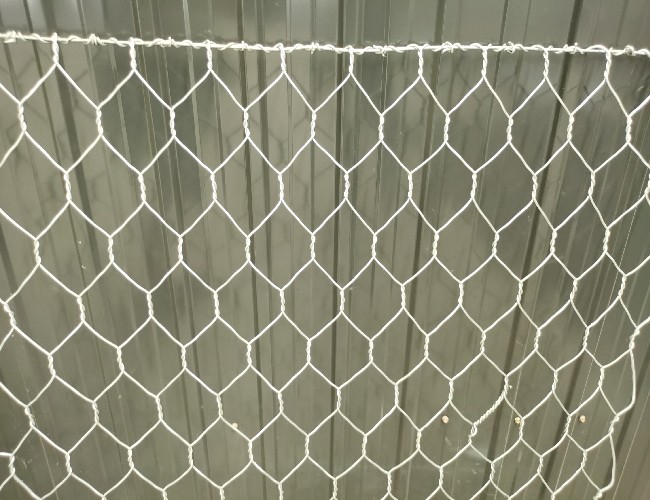

The following categories apply to double-twisted metal gabion
baskets depending on the coating:
a- Type 1, Double-twisted wire mesh, fasteners, lacing wire, and
stiffeners are fabricated from galvanized steel wire.
b- Type 2, Double-twisted wire mesh, fasteners, lacing wire, and
stiffeners are all made from wire coated with Zn-5A1-MM/Zn-10A1-MM
before being double-twisted to mesh.
c- Type 3, Double-twisted mesh, lacing wire, and stiffeners as type
1 and overcoated with PVC coating.
d- Type 4, Double-twisted mesh, lacing wire, and stiffeners as type
2 and overcoated with PVC coating.
| Minimum Weigt of Zn per Unit Area of Zn coated Wire Surface |
| 2 | 214 gsm (gram per square meter) |
| 2.2 | 229 gsm |
| 2.3 | 229 gsm |
| 3.05 | 259 gsm |
| 3.4 | 259 gsm |
| 3.8 | 275 gsm |
Key Features
Durable, flexible, and free-draining environmentally responsible,
aesthetically appealing, and able to blend in with the
surroundings. Soft ground can be used with little foundation
preparation. Protection is provided right away after being erected.
Possibility of employing smaller-sized stone than is generally
feasible with gabion baskets that are readily available locally;
low labor costs
| Typical Sizes of gabion boxes as per ASTM A975 |
| Length (m) | Width (m) | Height (m) | Cells |
| 2 | 1 | 0.5 | 2 |
| 3 | 1 | 0.5 | 3 |
| 4 | 1 | 0.5 | 4 |
| 1.5 | 1 | 1 | 1 |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
Packing of Nova Metal Gabion Baskets
The metal gabion basket is folded flat and packed in bundles for
ease of transportation to the site. The size of bundle is about
2*1*1m, and the weight of each bundle is in the range of 0.5 tons
to 1.2 tons.
Delivery
We provide worldwide shipping service no matter you are in America
or Middle East countries or in European countries.
The standard loading capacity of gabion baskets is 27 tons for a 40
ft container, and 18 tons for a 20ft container.
Frequency Asked Questions about Heavy hot dip Galvanized Hydraulic
Works use Metal Gabion Baskets:
Q: How is the lead time?
A: Our capability can produce 4000 square meters per day per
machine, it needs 4-5 days to produce one 40 ft container.
Q: What is your standard payment term?
A: Our payment term is flexible, our standard term is a 30%
deposit, the balance paid before shipment or against copy of BOL,
and other terms of payment are discussable, like 30% TT+70%LC.
Q: How many machines do you have?
A: Nova China factory has 18 sets of gabion weaving machines with
different hole sizes in our factory, which can produce most of the
holes customer need.
