Brand Name : | Nova |
Model Number : | D-221101 |
Certification : | ISO 9001, SGS, |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1000 m2 per week. |
Delivery Time : | 12 -15 days |
Metal mesh is an ideal material for decorative applications. It has
a variety of styles and textures, allowing it to be used in all
kinds of settings in both interior and exterior spaces. The
versatility of metal mesh provides design options that can add
visual interest to any space. It’s also highly durable, so it won’t
degrade over time and can withstand exposure to the elements.

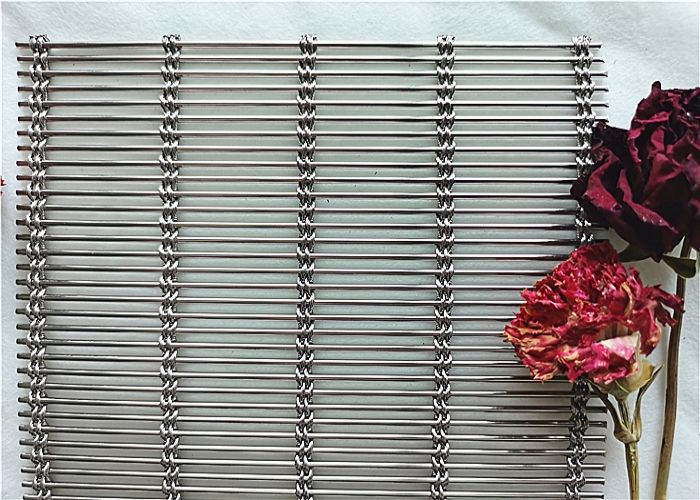

Architectural woven drapery is also called H-Type Cable and Rod
Combination Mesh. The mesh is made of a variety of materials,
including brass, copper, stainless steel, etc. It possesses
exceptional flexibility, high durability, and good corrosion
resistance. It is frequently used to construct doors, curtains,
stair handrails, and outside wall shading.
The most frequent and basic type of draperies for decorating
projects is woven stainless steel with different surface
treatments, such as powder coating, titanium coating,
electroplating gold, etc.,
1. Safety from fire, this mesh is made of metal which is not
flammable material.
2. Simple to install, installation is quick and simple in a stylish
way.
3. It is flexible and opulent and displays elegant and sumptuous
beauty.
4. Different sizes and apertures, custom openings, and sizes are
available.
Number | Cable dia. | Cable pitch | Rod dia. | Rod | Percentage | Thickness | Weight |
mm | mm | mm | mm | mm | Kg/m2 | ||
1 | 1×1.80 | 4.0 | 1.5 | 5.5 | 40.0% | 5.1 | 7.74 |
2 | 1×2.50 | 6.0 | 2.0 | 8.0 | 43.0% | 5.5 | 7.87 |
3 | 2×2.75 | 40.0 | 4.0 | 14.5 | 62.0% | 9.5 | 9.41 |
4 | 3×0.50 | 35.0 | 0.5 | 1.4 | 37.2% | 1.3 | 2.40 |
5 | 3×1.60 | 80.0 | 2.5 | 10.0 | 71.0% | 5.7 | 4.58 |
6 | 3×2.00 | 80.0 | 3.0 | 10.0 | 65.0% | 7.0 | 6.67 |
7 | 3×2.75 | 110.0 | 4.0 | 14.5 | 65.9% | 10.0 | 8.50 |
8 | 3×3.00 | 110.0 | 4.0 | 14.2 | 67.0% | 10.0 | 8.60 |
9 | 4×0.75 | 26.4 | 1.5 | 3.0 | 44.3% | 3.0 | 5.20 |
10 | 4×1.00 | 36.0 | 2.0 | 6.6 | 62.0% | 4.0 | 4.55 |
11 | 4×2.00 | 50.0 | 3.0 | 6.0 | 40.0% | 7.0 | 11.20 |
12 | 4×2.00 | 50.0 | 3.0 | 6.0 | 42.0% | 7.0 | 11.80 |
Color available to be ordered: brass, copper, bronze, golden, and
stainless steel.
Application Pictures of Woven Drapery Metal Wire Architectural
Decorative Mesh
![]() |
