PVC Coated Heavy Galvanized Embankment Protection Metal es
Gabion mattresses, also known as es, are a long-lasting, sturdy
product with a number of advantages. In order to promote vegetative
growth and prevent erosion on steep slopes, they are constructed of
stone or granite and filled with soil. es have a wide range of
uses, including slope protection, bank stability, and
beautification. They last a very long time and are simple to
install. They also require little upkeep and add natural beauty to
any space.
A more contemporary gabion structure intended to control erosion is
the . es, as opposed to gabion boxes, have a flexible design that
enables them to follow the curves of the slope they are protecting.
es assist to spread the power of the flowing water across a broader
area, which protects against slow-moving water like streams and
rivers. This lessens scour, the erosion brought on by strong
currents, and aids in preventing slope failure brought on by wave
action or precipitation runoff. Engineers can develop gabion
structures that are stronger and more resistant to the forces of
water using the additional design flexibility that beds offer.

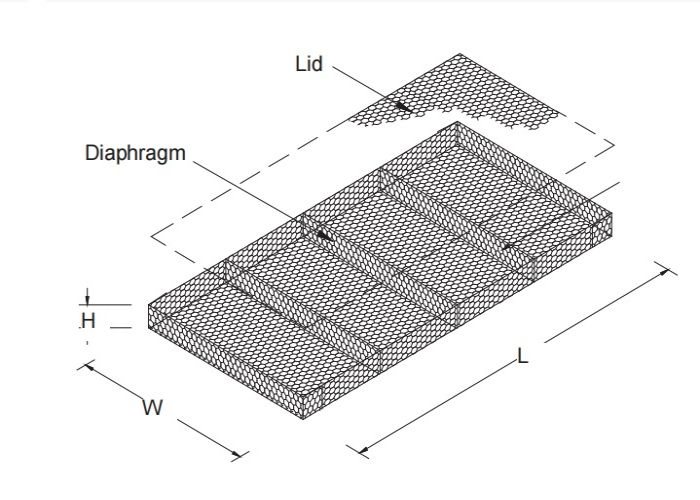

Typical Structure of Embankment Protection Metal es,
Typical sizes of Embankment Protection Metal es
L | W | H | D |
|---|
| 3m | 2m | 0.17m | 3 |
| 4m | 2m | 0.17m | 4 |
| 3m | 2m | 0.23m | 3 |
| 4m | 2m | 0.23m | 4 |
| 3m | 2m | 0.3m | 3 |
| 4m | 2m | 0.3m | 4 |
Type of coating for Nova Metal es:
The following categories apply to double-twisted metal es depending on the coating:
a- Type 1, Double-twisted wire mesh, fasteners, lacing wire, and
stiffeners are fabricated from galvanized steel wire.
b- Type 2, Double-twisted wire mesh, fasteners, lacing wire, and
stiffeners are all made from wire which is coated with
Zn-5A1-MM/Zn-10A1-MM before being double-twisted into mesh.
c- Type 3, Double-twisted mesh, lacing wire, and stiffeners as type
1 and overcoated with PVC coating.
d- Type 4, Double-twisted mesh, lacing wire, and stiffeners as type
2 and overcoated with PVC coating.
Information to be supplied by the purchaser
The following information shall be supplied by the purchaser at the
time of enquiry and order:
a) Standard NO.according to, for example: EN10223 or ASTM A 975;
b) Quantity;
c) Size of the units or containers;
d) Mesh size;
e) Wire diameter (mesh wire and lacing wire);
f ) Need sample or not;
g) Characteristics of the eventual organic coating, if applicable;
h) Inspection documentation requirements.
Example of designation to be used on ordering:
According to EN 10223-3:
Quantity: 500 pieces or a 20' container
Size: 4m x 2m x 0.17m, 4 diaphragms;
Mesh size: 80 x 100
Wire diameter 2,2 mm;
Surface treatment: Hot dip galvanized 50gsm + PVC coated.
Please also included destination port if you want us check the
freight.
