Welded or woven wire mesh gabion basket for soil erosion / gabion
mesh box
Product Description:
Soil erosion is an ever present problem and gabions have proved to
be a lasting solution around the world, The lasting appeal of
gabions lies in their inherent flexibility, Gabions are wire mesh
fabric containers, uniformly partitioned, of variable size,
interconnected with other siar containers and filled with stone at
the site of use, to form flexible, permeable, monolithic structures
such as retaining walls, sea walls, channel linings, revetments and
weirs for earth retention.
Gabions and mattresses may be as assembled baskets, as unassembled
panels, or in rollstock form. Highly permeable, the gabion
structures act as self draining units which "bleed" off ground
waters, relieving hydrostatic heads. Interstitial spaces in the
rock fill dissipate the energy of flood currents and wave action.
Gabion wire mesh boxes/basket specifications
| Wire diameter/mm | Mesh size /mm | Size/m | No. of diaphragms | Deviation |
| 2.0-4.0 | 60*80 80*100 90*110 100*120 120*150 | 1*1*0.3 | 0 | ± 5% |
| 1*1*0.5 | 0 |
| 1*1*1 | 0 |
| 2*1*0.3 | 1 |
| 2*1*0.5 | 1 |
| 2*1*1 | 1 |
| 3*1*0.3 | 2 |
| 3*1*0.5 | 2 |
| 3*1*1 | 2 |
| 4*1*0.3 | 3 |
| 4*1*0.5 | 3 |
| 4*1*1 | 3 |
| 2*0.5*0.5 | 1 |
| 3*0.5*0.5 | 2 |
| Customized according to buyer's requirement. |
Gabion mesh box Feature:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a
integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Low transport freight. It can be folded together for transport and
further installation.
Flexibility, no structural joints, the overall structure of
scalability.
Corrosion resistance
Gabion stone cage applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
landscape

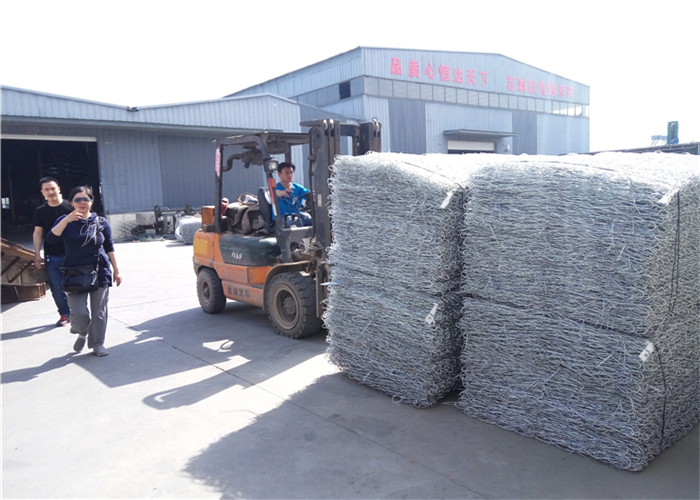

Packing & Delivery:
Packing Details: pallet or in bundle, as buyer's requirement.
Delivery Details: 15-20 Days after received the deposit by TT,
according to buyer's quantity.
Tell us the gabion basket length, height, width, and used for
retaining wall, garden wall, erosion control, flood protection etc,
We will then get back to you with the list of gabion baskets needed
to build the wall, costings including delivery.
