Zinc+Pvc Coated Gabion Box / plastic coated gabions for erosion control

Product Description:

Gabions are structural units consisting of soft annealed, heavily galvanized wire frame container, made by double twisted hexagonal wire mesh with uniform partitioned, of variable size and filled with stones at the site of use, to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments, weirs, etc, for erosion and flood control. Gabion boxes are formed from panels of double twisted mesh which are framed by thicker selvedge wires. End panels and diaphragms are normally at 1 meter centers. The double twist weaving of the mesh prevents unraveling. The gabion units are supplied with appropriate lacing wire for assembly and erection.

Installation:

Gabions should be positioned as required and adjacent units connected. Once in position, gabion units should be stretched taught to provide a neat straight alignment and where a high standard of rock facing is required to the gabions, additional formwork may be used on the face of the cage to provide an even straighter, neater finish.

The lid of the gabion that remains open during the filling process should be folded back out of the way whilst filling.

Rock should them be machine placed into the gabion unit to about one third height of a typical 1m high cage. Laborers should then hand position the rock against the front face of the cage to ensure a neat, tightly packed finish.

Lastly, the gabion lid is pulled over into position on top of the rock and is laced closed to the perimeter of the gabion cage and to each of the vertical partitions/diaphragms within the gabion cage.

Gabions and rock mattresses

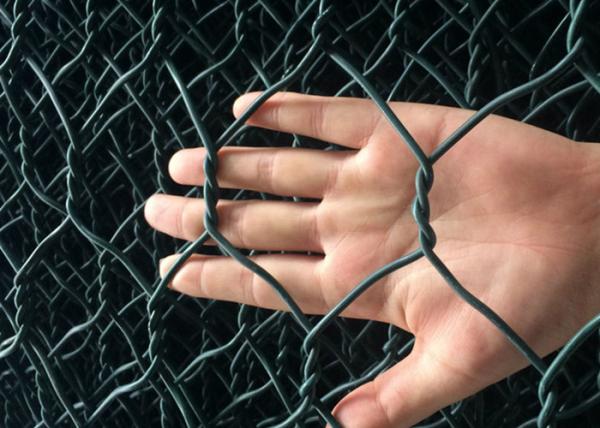

Gabions and rock mattresses are baskets or cages manufactured from heavily galvanized wire, and also with the addition of a PVC sleeve coating on the core wire.

Applications include:

Retaining walls
Weirs and drop structures
Culvert protection
Wing walls
Bridge abutment protection
Channel lining
Chutes and spillways
Landscaping
Rockfall protection netting (mesh)
Erosion control and stabilization.

Durability
Our PVC coated wire gabions and mattresses are particularly well suited for an extended life in harsh and corrosive environments.

Strength and flexibility
rock-mattresses, and rock fall netting are constructed from double-twist hexagonal woven mesh. This provides inherent strength and flexibility. Also, if a wire is cut or broken the mesh cannot "unravel".

Porosity
Gabion and rock-mattress structures are porous to prevent build up of hydrostatic pressure and are able to withstand differential settlement.

Founded in 1999, Hebei Nova Metal Wire Mesh Products Co., Ltd has becoming a leading manufacturer of gabion mesh and other wire mesh products in China.

Nova gabion boxes / baskets and other wire mesh products are widely used in hydraulic projects, airport protection, residential fences, highway protection, building decoration, construction and so on. In March 2016, our gabion baskets were used at the training project of the Yellow River.

Dedicated to strict quality control and thoughtful customer service, our experienced staffs are always available to meet your requirements and ensure customer satisfaction. In recent years, our company has introduced a series of advanced equipment including gabion weaving mesh machine. In addition, all of our wire mesh products quality exceed ASTM or EN standard and sell well not only in China but also to such countries and regions as the USA, UK, Australia, Philippines, Thailand, Brazil, Saudi Arabia and United Arab Emirates etc.

We wish to create a bright future with customers on the base of equality and mutual benefit and sincerely welcome friends from all over the world to visit our plant. We wish to establish long-term win-win partnerships with both domestic and foreign customers.
