Welded mesh stone basket / welded mesh gabion for veneers and
cladding
Product Description
The welded gabions are constructed using heavy gauge steel wire,
with all-welded mesh utilizing wire stiffeners at all exterior
corners of the structure, along with our unique helical
edge-jointing and internal partitioning, makes for a solid product
with superior finish and seismic strength, and maybe field cut to
fit curves, culverts, or angles.
Enhance your landscaping and civil engineering projects with our
top-of-the-line Welded Mesh Gabion. Crafted with precision and
designed for exceptional performance, our gabions are the perfect
solution for a wide range of applications.
welded Mesh Gabion Standard size
| Specification | Range/Options |
|---|
| Material | Galvanized steel wire |
| Mesh Size | 50mm x 50mm (2" x 2") or customized |
| Wire Diameter | 3.0mm (10 gauge), 4.0mm (8 gauge), etc. |
| Gabion Size (Length x Width x Height) | Customizable as per project requirements |
| Coating | Galvanized (Zinc coating) |
| Tensile Strength | Minimum 550 N/mm² (80,000 psi) |
| Corrosion Resistance | Excellent |
| Assembly | Modular design, easy assembly and interconnection |
| Drainage | Permeable structure for natural drainage |
| Applications | Erosion control, slope stabilization, riverbank protection,
landscaping, etc. |
| Customization Options | Various sizes, mesh configurations, and wire diameters available |
How to install welded gabion box:
After checking you have all the components, open out the mesh
panels.
Lift the side panels into the vertical position and join by feeding
the correct length of the helical-formed spiral into the corner,
using a rotating action, until the helical is fully engaged.
When the helical is fully engaged, the formed end should lock in
place.
All panel joints (vertical joints) are formed by assembling the
adjacent panel. Each joint is retained with one helical.
Repeat the filling and stiffener wire installation until the gabion
is full and then close the lid by joining with the correct helical
while ensuring the top mesh bears down on the rock fill.

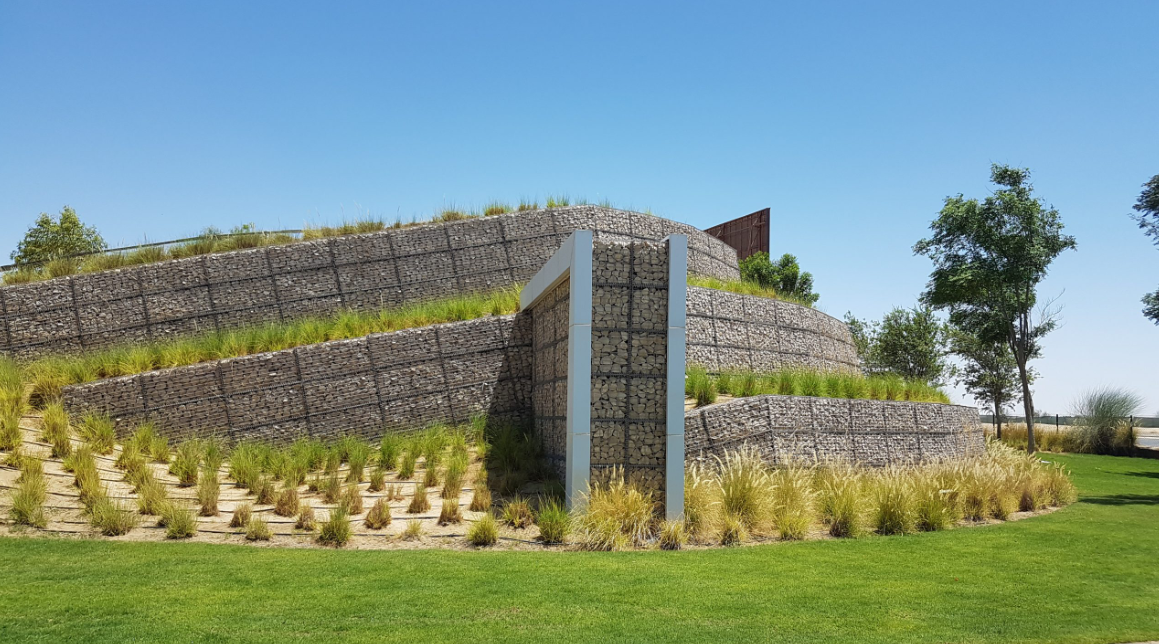

Applications:
Our Welded Mesh Gabions offer versatility like no other. Whether
you require erosion control, slope stabilization, riverbank
protection, or landscape enhancement, our gabions are up to the
task. They can also be used creatively to design decorative walls,
garden features, or sound barriers, giving your project a unique
and eye-catching appeal
Packing details
Packing: On pallets or bundles, put in wooden cases or cartons, as
per buyer's requirement.
