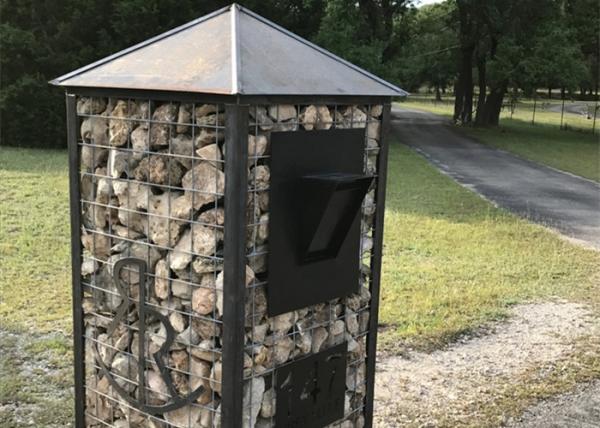

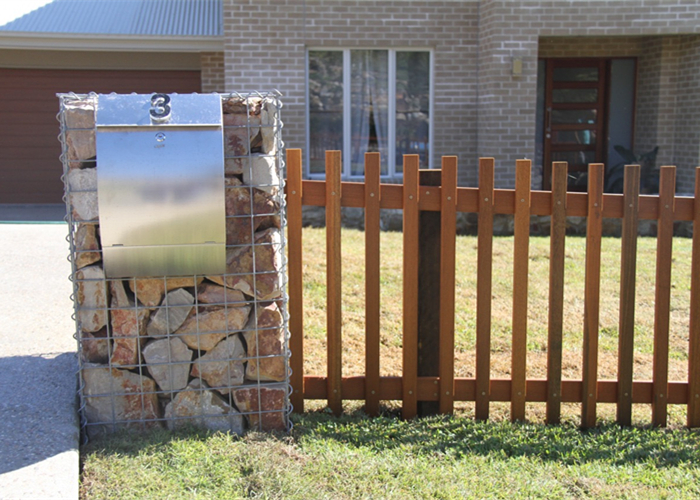

Galfan welded mesh gabions / galvanized welded gabions for mailbox
Product Description:
Nova gabion baskets are made of high quality welded wire mesh
panels, are hot dip galvanised, and available in a range of
standard sizes or made to your specification. all edges are bound
together using spiral joiners, forming a whole structure.
| Welded Gabion specifications |
| Wire diameter:3.0-6.0mm |
| Size M | Mesh size MM | DiaphragmsNo. | CBM |
| 1.0*1.0*0.5 | 50*50 75*75 50*100 100*100 | 0 | 0.5 |
| 1.0*1.0*1.0 | 0 | 1.0 |
| 1.5*1.0*0.5 | 0 | 0.75 |
| 1.5*1.0*1.0 | 0 | 1.5 |
| 2.0*1.0*0.5 | 1 | 1.0 |
| 2.0*1.0*1.0 | 1 | 2.0 |
| 3.0*1.0*0.5 | 2 | 1.5 |
| 3.0*1.0*1.0 | 2 | 3.0 |
| 4.0*1.0*0.5 | 3 | 2.0 |
| 4.0*1.0*1.0 | 3 | 4.0 |
| The specifications can be customized. |
Standard size
• 2m x 1m x 1m
• 2m x 1m x 0.5m
• 1m x 1m x 1m
• 1m x 1m x 0.5m
• 1.0m x 0.5m x 0.5m
• 0.5m x 0.5m x 0.5m
• 3m x 1m x 1m
• 3m x 1m x 0.5m
welded mesh Gabion baskets wire as buyer's requirement.
How to install welded gabion box:
After checking you have all the components, open out the mesh
panels.
Lift the side panels into vertical position and join by feeding the
correct length of helical formed spiral into the corner, using a
rotating action, until the helical is fully engaged.
When the helical is fully engaged, the formed end should lock in
place.
All panel joints (vertical joints) are formed by assembling to the
adjacent panel. Each joint is retained with one helical.
Repeat the filling and stiffener wire installation until the gabion
is full and then close the lid by joining with the correct helical
while ensuring the top mesh bears down on the rock fill.
Applications:
• Retaining wall structures.
• Decorative fence walls.
• Prevention of current scour and erosion control.
• Bridge protection.
• Hydraulic structures, dams and culverts.
• Embankment protection.
• Rockfall prevention and soil erosion protection.
• Landscaping.
Packing details
Packing: In pallet or in bundle, put in wooden case or cartons,as
buyer's requirement.
