Galvanized gabion box for water&soil protection / hexagonal
gabion box
Product Description:
Gabion baskets manufactured from double twisted hexagonal woven
steel wire mesh or welded wire mesh by wire machine, filled with
stones at the project site to form flexible, permeable, monolithic
structures. The steel wire used in the manufacture of the gabion is
heavily Galfan coated soft temper steel wire or PVC wire. To
reinforce the structure, all mesh panel edges are selvedge with a
wire having a greater diameter.
Gabion baskets have the features of simple installation, no special
technology needed, corrosion resistant, economic, mixed to form a
integrity with the natural environment.

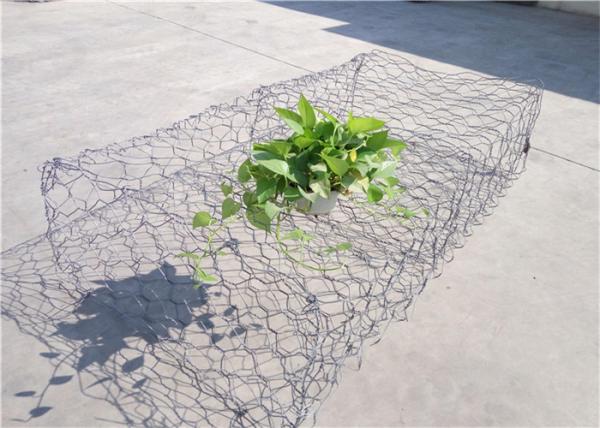

Gabion box is made of triple twist hexagonal woven mesh fabric with
galvanized wires and PVC coated wires, also can be HDPE coated,
which is corrosion resistant and acid resistant. The HDPE coated
woven gabions mattresses is a good solution for coastline, which is
a undulating terrain and a high level of acid in industrial waste.
| Gabion box size/m |
| 1 x 1 x 1 | 1,5 x 1 x 1 |
| 2 x 1 x 1 | 3 x 1 x 1 |
| 4 x 1 x 1 | 2 x 0,5 x 0,5 |
| 2 x 1 x 0,5 | 3 x 1 x 0,5 |
| 4 x 1 x 0,5 | 6 x 2 x 0,5 |
The most popular products and sizes:
6 × 8 mesh, 2.2 mm wire diameter, galvanized and PVC coating 4 m ×
2 m × 0.17 m baskets.
PVC coated /galvanized high gabion mattresses 6 Ft wide × 1 Ft high
× 9 Ft length (8 × 10 mesh ), with internal wire Dia 2.7 mm with
PVC 3.7 mm.
Galfan /PVC gabion baskets 2 m × 1 m × 1 m (8 × 10 mesh ) (internal
wire Dia 2.7 mm with PVC 3.7 mm) - double twist hexagonal mesh.
Hot-dipped galvanised gabion box selvedge wire 2.7 mm (zinc 260
g/m2), mesh wire 2.2 mm (zinc 240 g/m2), mesh size 60 × 80 mm, size
of boxes 5 × 2 × 0.17, 3 × 2 × 0.3.
Welded gabions 2 m × 1 m × 1 m, mesh 6 × 6 cm, wire diameter 2.7 mm
and after GALV + PVC 3.5 mm.
Double twisted gabions size 2 m × 0.5 m × 0.5 m, 8 × 10 cm mesh,
2.7 mm wire, selvedge wire 3.4 mm galvanized 220 grams of zinc + 1
mm PVC coating gray.
Advantages:
1. FLEXIBLE
The hexagonal mesh construction permits natural adjustment to
varying conditions of earth settlement without causing fracture or
collapse of the structure.
2. PERMEABLE
A Gabion structure allows water to pass through, water pressure
cannot build up behind it and the structure is continuously
drained.
3. STRONG
The flexibility of the Gabion structure provides the inherent
strength
4. ECONOMICAL
Filling materials are usually found on or near the site. No
structural maintenance is needed and foundation work is usually
unnecessary.
5. NATURAL APPEARANCE
Natural stone makes the structure aesthetically pleasing especially
when subsequent vegetation growth takes place.
6. SIMPLE
Unskilled labour can be used for quick assembly.
Gabion application:
Geotechnical Engineering
Flood Control & canal training
Erosion protection
Rock Fall protection
Coastal protection
Gabion retaining wall structures
Roads and highway protection
Packing & Delivery:
Packing Details: In pallet or in bundle, as buyer's requirement.
Delivery Details: 5-10 Days after received the deposit by TT,
according to buyer's quantity.
