Double-Twisted Hexagonal Gabion Mesh PVC Coated Wire Stone Gabion
Cages
Product Description:

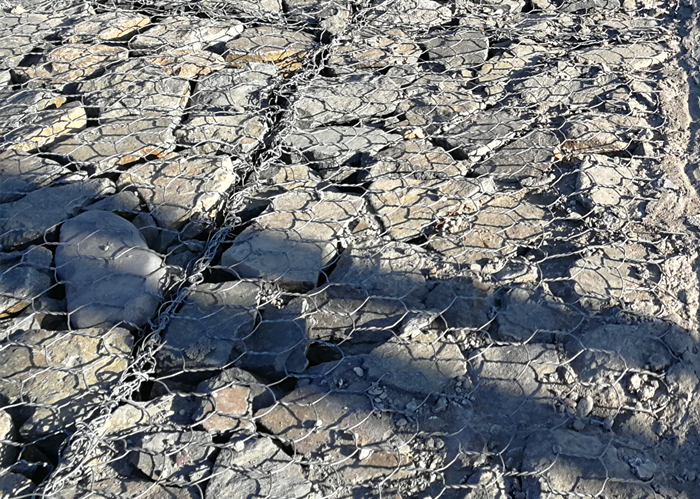

Gabion boxes , uniformly partitioned, are wire made containers of
various sizes. It is interconnected with other siar containers and
filled with stones at the site of use to form flexible, permeable,
monolithic structures such as retaining walls, sea walls, channel
linings, revetments and weirs for earth retention. In order to
strengthen the boxes, all the edges of structure are selvedged with
wire of greater diameter.
It can be produced of different types to meet your requirement,
such as galvanized, galfan, PVC, PE wire etc.
Gabion wire mesh boxes/mattress specifications
| Length (m) | width (m) | height (m) | diaphragm | volume | tolerance |
| 2 | 1 | 0.3 | 1 | 0.6 | Length+/-3%
Width+/-5%
Height+/-5% |
| 3 | 1 | 0.3 | 2 | 0.9 |
| 4 | 1 | 0.3 | 3 | 1.2 |
| 2 | 1 | 0.5 | 1 | 1 |
| 3 | 1 | 0.5 | 2 | 1.5 |
| 4 | 1 | 0.5 | 3 | 2 |
| 1 | 1 | 0.5 | 0 | 1 |
| 1.5 | 1 | 1 | 0 | 1.5 |
| 2 | 1 | 1 | 1 | 2 |
| 3 | 1 | 1 | 2 | 3 |
| 4 | 1 | 1 | 3 | 4 |
Advantages:
1.Stone filling is characterized by porosity that enables water to
flow and doesn’t create hydraulic pressure on the panels of gabion
structures, it has drainage function.
2.Gabions are able to deform while still retaining their integrity,
they adapt themselves to terrain where the concrete structures may
crack and fail, they are suitable for unstable subgrades.
3.The high resistance and durability is secured by outstanding
features of steel wire, its surface treatment by heavy
galvanization or PVC coating and by the quality of stone filling.
During the lifetime the pores are filled up with alluvia and the
whole structure is grown through by vegetation what increases its
strength and therefore is able to resist against great pressures.
4.Gabion baskets are made from double twisted, hexagonal woven wire
mesh. The wire used to manufacture the gabion baskets is fabricated
from high quality tensile, heavily galvanized steel, which is also
available with an extruded PVC coating for additional corrosion
protection, when required by the application. The double twist of
the woven wire mesh provides integrity, strength and continuity to
the structure by adding a non-raveling effect that prevents any
accidental damage from spreading.
Gabion stone box applications:
Control and guide of water or flood , Preventing of rock breaking,
Keep off dust wall Water and soil protection , Port project,
roadway protection, Bridge protection , Strengthening structure of
soil and Protection engineering of seaside area.
