Welded And Hexagonal Heavy Zinc Coated Gabion River Mattress For
Channel Linings
Product Description:

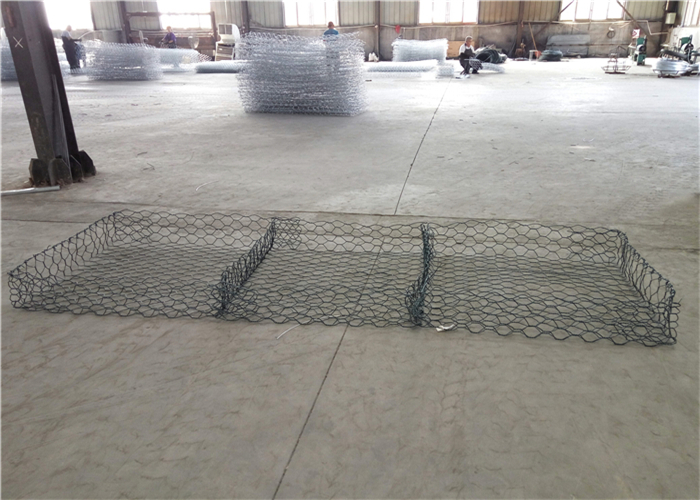

, also called gabion mattress, revet mattress, is a type of
container with hexagonal meshes and double or triple twisted
structure. The revet mattress has relatively smaller height
compared with gabion box. The gabion mattress is widely used in the
riverbank protection, coastal protection and channel linings.
Different materials of
Galvanized steel wire before fabrication. Using the galvanized
steel wire for fabricating the , which has excellent corrosion and
rust resistance performance during using. But the zinc coating on
the joints of gabions may slightly falling off during fabrication.
Galvanized surface treatment after fabrication. Using steel wire
for fabricating and then electric or hot dipped galvanized treated.
In this way, the zinc coating will not destroyed during fabrication
and supplier better corrosion and rust performance and longer
service life.
Zinc-aluminum alloy steel wire before fabrication. The aluminum
added into the coating can supply additional protection for the
gabion mattress. The content of aluminum is different. The Zn-5
Al-MM steel wire means 5% aluminum and 95% zinc coating, which is
also called Galfan coating. It can also be Zn-10 Al-MM, which
refers to 10 % aluminum and 90% zinc coating.
PVC coated wire before fabrication. Cover the steel wire with PVC
film, which can be green, gray and various other colors and then
fabricate the gabion as usual. The PVC coated material can not only
supply excellent corrosion and rust resistance, it can also make
the revet mattress colorful and beautiful. The PVC coated wire is
just suitable for woven only.
PVC coating after fabrication. For beautiful surface and blending
with surrounding environments, the welded gabion mattress will be
PVC coating surface treated after fabrication. It is widely used
for different landscape construction applications and popular with
artists.
Specification of River Mattress
| Length(m) | width(m) | height(m) | Diaphragm quantity |
| 3m | 1m | 0.15-0.45 | 2 |
| 4m | 1m | 0.15-0.45 | 3 |
| 5m | 1m | 0.15-0.45 | 4 |
| 6m | 1m | 0.15-0.45 | 5 |
Different styles of
can be fabricated in different technologies, which is woven or
welded into different mesh types and specs.
Welded . The main application of welded is for decoration, such as
landscape construction, fire place and planters applications. It
can be used for slope protection as the woven .
Woven . The woven is a functional product, which is widely used for
slope protection, coastal protection, river bank protection,
channel lining, revetment and other protective applications.
Gabion mesh Features:
ENVIRONMENTAL FRIENDLINESS–Gabions and es are environmentally
friendly products.
PERMEABILITY–The stone fill allows the water to seep through the
structure while retaining the soil, therefore no additional
drainage is required to relieve the hydrostatic pressures.
EASY TO BUILD–Gabions and es construction does not require skilled
labor because they are very easy to build.
Applications of
Hexagonal river mattress can be used as protective meshes, for
channel lining, revetment, weirs for erosion controlling, coastal
protection, river bank protection, slope protections.
The welded can be used as fireplace, planter, feature wall and
various landscape construction projects.
