High Strength Tecco Slope Stabilization System / Slope
Stabilization Protective Mesh
Product description:
rockfall protection system Also known as tecco system, consists of
five main components, as below:
1). Rockfall protection netting(Tecco mesh)
Rockfall protection mesh is made of high-tensile steel wire with an
ultimate tensile strength of 1770 N/mm2.
2). Claw type Spike Plate
The claw type spike plate is commonly used with nails to fasten the
tecco mesh onto the slope firmly. The claw design make the spike
plate a more stable and firm structure.
The plates are galvanized and have dimensions of
13.0''*7.5"*0.4"(330mm*190mm*10mm), also can be customized.
3). Tecco mesh connection fittings
There are 2 types of connection way for Tecco mesh, Clips or Sewing
rope.
Connection Clips. The connection clips are used to connect the
neighbor tecco mesh rolls firmly, and the connection is commonly
without overlap, these claw are hot dip galvanized and consist of
0.25"(6mm) thick steel spiral.
Sewing rope, it's used for connecting the neighbor tecco meshes.
And the connection is commonly have overlaps. It can be used to
replace the clips.

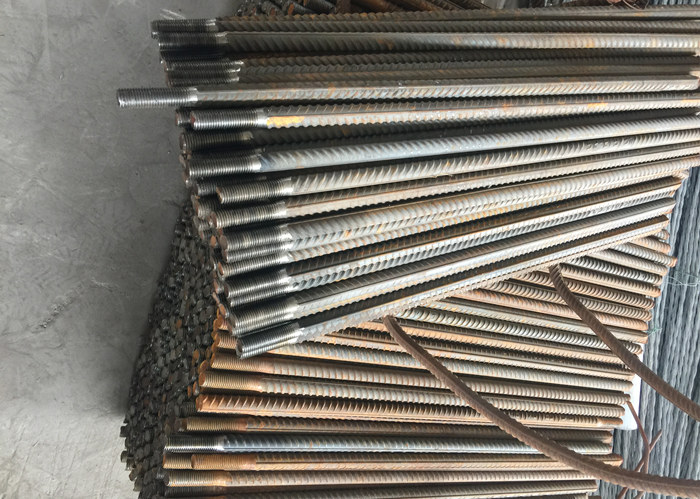

4). Soil or rock nails
The main anchors of the system are installed in a grid typically
from 6.6 to 13.1 ft (2.0 to 4.0m) horizontal and vertical spacing,
Anchor consist of steel bars ranging from 1.0 to 1.25 ft (25 to
32mm).
5). Boundary rope.
Pass through the tecco mesh and then be fixed onto the anchor for
tecco mesh and system stability.
| Surface treatment | zinc-aluminum coated, ≥150g/m2 |
| Breaking load of single wire | 12.5KN |
| Inscribed circle diameter | 65 mm, 80mm, 45mm, 40mm, 60mm, 55mm, 70mm, 75mm etc. |
| Roll length | 10-30m |
Tecco mesh Advantages:
Safety.
The tecco mesh can be used to stabilize any kinds of slope,
including rocks and loose soil slopes.
High tensile strength.
The tecco mesh is made of high tensile steel wire, which the
tensile strength is more than 1770 MPa, which can supply maximum
protection to the slope and people.
Environmental friendly.
The rhomboid mesh can let the plants grow regularly and make the
slope or maintain be more beautiful.
Rhomboid mesh structure.
This structure provide most stability for the geological conditions
and can be tightly secured on the slope even on the irregular
mountains.
Knotted ends.
Different from the chain link fence which has wrapped edge, the
tecco mesh has knotted ends which can improve the tensile strength
and stability of the structure.
Lightweight.
The tecco mesh has excellent strength-to-weight ratio, which make
it easy to install and transport.
Durable.
Heavy zinc coated surface let the tecco mesh has outstanding
corrosive resistance performance, and the high tensile strength
material make the tecco mesh be used for a long service life.
Tecco mesh Applications:
The whole system is composed of high-strength steel wire, bolt and
other installation components, also known as safety netting system,
it's widely used to cover and intercept slope reinforcement, to
defend various geological disasters. It can not only stabilize the
slope and replace the traditional mortar slag stones structure, it
is also environmental friendly, which can ensure the plant growth.
