Galvanized Gabion Box With PP Geobags For Highway Greening
Engineering
Geobags Description:
The geotechnical gabion bag is galvanized wire gabion interior
lined with permeable fabric.
The water-retaining structure can be formed quickly by using local
materials and filling sand, gravel, or natural graded gravel.
A high tensile synthetic fabric is woven from a single strand of a
single fiber, mainly composed of polypropylene.
Geobags Specification:
The raw material of geobags is polypropylene fibers.
Item material | PP |
Tensile strength(MD),(KN/M) | >80 |
Tensile strength(CMD),(KN/M) | >80 |
Breaking enlonggation(%) | <30 |
Uv resistance retention rate,(150h/%) | >95 |
size(m) | 1*1*1 |
Remark | Special specification and size can be customized according to the
requirement of a contract or agreement. |
Gabion Box Specifications:
| Gabion Size(m) | Hole Size |
| 8x10 |
| Length | Width | Height | Galvanized |
| Wire diameter | 3.05mm |
| 2 | 1 | 1 | Selvedge wire Dia | 3.8mm |
| 3 | 1 | 1 | Lacing wire | 2.2mm |
| 4 | 1 | 1 | Fastener | 3.0mm |
| 6 | 1 | 1 | | |

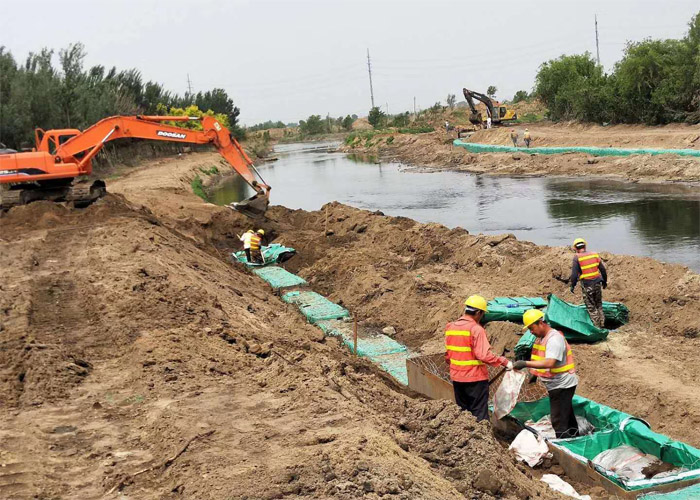

Gabion Box With PP Geobags Application:
1. Highway Greening engineering - soil is filled in the bag to lay
a foundation for greening road slope
2. It can be combined with vegetation to promote ecological
restoration of the natural environment and greatly reduce the
impact of traditional protection projects such as cement and stone
on the environment.
Gabion Box With PP Geobags Characteristics :
1. With physical and chemical properties, this compound material
can resist erosion, is not affected by the chemical substances in
the soil, will not change or decay, is not degradable and can
resist the erosion of insect pests.
2. This kind of gabion is an important part of the flexible
ecological slope engineering system, which has the filtration
function of target pervious to water and soil.
3. It can not only prevent the loss of the filling in the
ecological bag, but also realize the normal exchange of water in
the soil, so as to reduce the hydrostatic pressure of the slope, at
the same time keep the characteristics of the ecological bag
impermeable to the soil, and also keep the medium of water, soil
and vegetation to survive.
