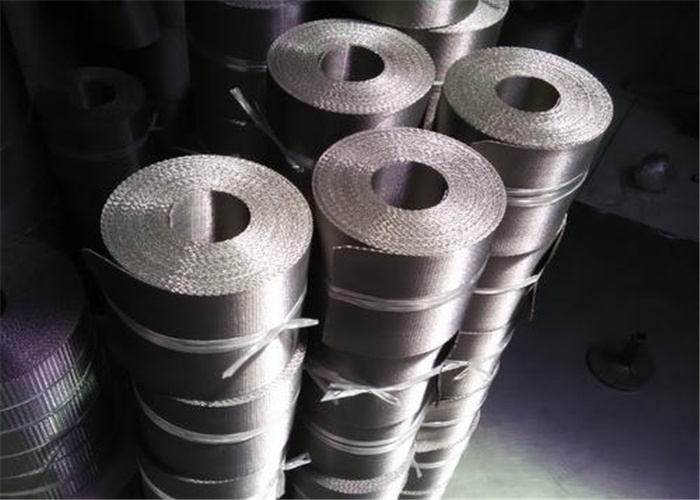

Auto Screen Belts Reversible Dutch Weave Mesh/Reverse Dutch
Mesh/Extruder Filter Screen/Reverse Dutch Mesh
1. Name: contrast type net. According to local differences and uses, it is
also called: contrast seat mesh belt (Dutch cloth)
2. Material specifications: use high quality stainless steel wire
3. Weaving: reverse dutch weaving
4. Features: smooth surface, high hardness, continuous mesh, no deformation,
high temperature resistance, corrosion resistance, flexible mesh,
etc., with excellent filtration performance, good filtration
precision, high load strength, high temperature resistance, low
temperature resistance, etc.
5. Specifications: The general length is 10 meters long, the width is 40mm-210mm, the
mesh number is 40 mesh -350 mesh, the maximum width is up to 50 cm,
and the special specifications can be processed and customized.
| material | 201, 304, 304L, 316, 316L, 431, 321, ect |
| weave | reverse dutch weave |
| mesh count | 20-400 |
| diameter | 0.10-0.8mm |
| width | 1m (customized) |
| length | 30m(customized) |
| Features | excellent filtering performance/Continuous/no
deformation/hardness/corrosion resistance/anti-oxidation |
| Mesh Count | Wire Diameter | Thinckness | Width |
| 54*15 | 0.45*0.6 | 1.75 | 50-800 |
| 72*15 | 0.45*0.55 | 1.7 | 50-800 |
| 132*17 | 0.223*0.45 | 1.2 | 50-1000 |
| 160*18 | 0.28*0.45 | 1.27 | 50-1000 |
| 200*40 | 0.17*0.27 | 0.7 | 50*1500 |
| 260*40 | 0.15*0.27 | 0.65 | 50*1500 |
| 300*40 | 0.15*0.27 | 0.65 | 50*1500 |
| 350*40 | 0.13*0.27 | 0.6 | 50*1500
|
Feature:
Mesh surface is smooth
Hardness is high
High temperature resistance
Corrosion resistance
Flexible mesh
Excellent filtering performance.
Application of reverse dutch weaving wire mesh:
--Be widely used in ribbon style continuous screen changers. (automatic screen changers).
--Major in Plastic Extrusion,Melt Filtration and other plastic
industry Filed for PP,PS,PVC,ABS,PE,PET etc.
Packing: packed with water-proof paper for inside and wooden case
for outside.
Deliever:3-30 days after ordering the product.
