PVC Coated Twisted Wire Gabion Matresses / gaboion mattress for
river control
Product Description:
Double twisted hexagonal wire gabions and es have been used for
channel linings, river bank restoration, soil retention, slope
stabilization, and other applications many years, Gabions mattress
are compartmentalized containers made of galvanized steel hexagonal
wire mesh or welded mesh panel, and filled with stone. they become
a large, flexible and permeable building block from which a broad
range of structures may be built.
Sizes of gabion mattress/:
Standard sizes: 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m
3x2x0.30m
Mesh size(mm): 60x80mm,80x100mm,100x120mm,120x150mm
Wire diameter: 2.2mm/3.2mm,2.4mm/3.4mm,2mm/3.0mm
Gabion Mattress/ Gabion Mattress
| Length(m) | Width(m) | Height(m) | Mesh type(mm) |
| 3m | 2m | 0.15-0.20-0.25 | 80x100 |
| 4m | 2m | 0.15-0.20-0.25 | 80x100 |
| 5m | 2m | 0.15-0.20-0.25 | 80x100 |
| 6m | 2m | 0.15-0.20-0.25 | 80x100 |
| 3m | 2m | 0.17-0.23-0.30 | 60x80 |
| 4m | 2m | 0.17-0.23-0.30 | 60x80 |
| 5m | 2m | 0.17-0.23-0.30 | 60x80 |
| 6m | 2m | 0.17-0.23-0.30 | 60x80 |
(All sizes and dimensions are nominal. Tolerances of ± 3% of the
width, length, and ±2.5 cm of the height shall be permitted.)
Advantages:
Flexibility
Durability
Strength
Permeability
Reliability
Longevity
Low Cost
Easy assembly requires no technical skill to construct
Our standard PVC coated, galvanized gabion baskets are constructed
of 3-mm or 4-mm steel wire - either woven or welded, depending on
strength required. In addition to standard PVC coated gabion basket
sizes, we also offer an exclusive line of Mini Gabions, available
in standard 2 m, 3 m, and 4 m lengths, measuring 0.5 m high by 0.5
m deep.

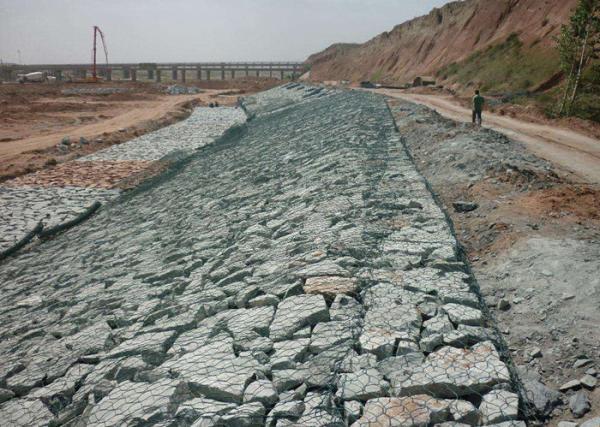

Gabion mattress application:
Waterways and Channels
River Crossing
Landscaping Retaining Structures
Marinas and Seashore Protections
Bridges and Culvert Protections
Lakes
Rockfall Protection
Packing & Delivery:
Packing Details: In pallet or in bundle, as buyer's requirement.
Delivery Details: 5-10 Days after received the deposit by TT,
according to buyer's quantity.
